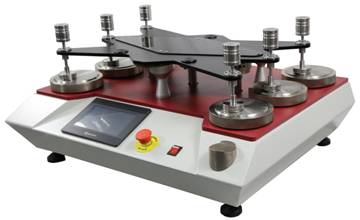

Used for testing of the wearing resistance and balling-up class of flat tatting knits and flat wool dints as thin cotton, jute and silk fabric .
　Standards:GB/T 21196、GB/T 4802.2、GB/T 13775、FZ/T 20020、ISO 12945-2、ISO 12947

ASTM D 4966、ASTM D 4970、ASTM D 3886、JIS L 1096、IWS Tm196/ TM112

Instrument features:
1, the standard Lissajous curve


        Wear curve                                           Pilling curve
2, weight and key components made of 304 stainless steel, good looks, durable
3, the pressure plate made of special aluminum alloy to ensure long-term use without deformation
4, needle roller bearing type transmission, to ensure that the workbench test error-free
5, can be preset multiple sets of running programs, a variety of counting methods (plus counting and counting down)
6, Nine stations independent cumulative count, can be locked at any single station for easy test management
7, color touch screen control, Chinese and English menu interface


【Technical Parameters】:
1, the number of stations: 6
2, counting range: 0 ~ 999999 times
3, the maximum stroke: horizontal: 60.5 ± 0.5mm Longitudinal: 24 ± 0.5mm
4, the amount of pressurized material: a, gripper: 198 ± 2g
b, fabric sample weight: 395 ± 2g
c, furniture decoration sample hammer: 594 ± 2g
d, B-type holder: 155 ± 1 g
e, stainless steel butterfly: 260 ± 1g
5, grinding block effective friction diameter:
A type 198g (1.96N) Friction head Φ28.65 ± 0.05mm
B type 155g (1.52N) Friction head Φ90 ± 0.10mm
6, the relative movement of the holder and the mill speed: 50 ± 2r / min
7, loading sample hammer mass: 2385 ± 10g
8, Dimensions: 885 × 600 × 410mm
9, Power: Ac220V 50Hz 500W
10, weight: 150kg
