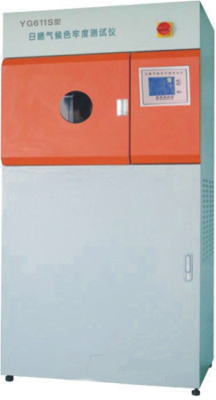

Name:YG611S/YG611D Series Color-fasten Sun-to-Light and Weather Tester
Keywords:Series Color-fasten Sun-to-Light and Weather Tester,Textile Instrument,Textile Testing Instrument
Description
It is used for a variety of colored textiles, leather, leather and plastic materials such as colored light fastness, color fastness and light resistance to weather aging test.
Standards： GB/T8427、GB/T8430、IS-B02、ISO105-B04、ASTM AATCC16 etc.
Main Technical Data
| Model： | YG611S | YG611D |
| Operating principles： | Analogizing and intensifying the natural environmental effects of light, temp and rain on the materials | |
| Light source： | Air-cooled xenon long-arc lamp,1.5KW | Air-cooled xenon long-arc lamp,3KW |
| Output mode： | Test dada is processed by computer and show on a liquid crystal display. A standard show board thermometer is provided for the test compartment temp control | |
| Light sources： | 24Gears(Adjustable) | Light energy settable and automatically compensation available |
| Central distance of sample clamps： | 175mm | |
| Speed： | Revolution：5rpm,Axial rotation： 1800 | |
| Specimen grippers： | 10 pieces（Sampling thickness：0.5～6mm) | |
| Power source： | AC220V,12A,2.5KW,50Hz | AC220,25A,4.5KW,50Hz |
| External dimensions： | 820×500×1400mm(L×W×H) | |
| Weight： | 200kg | 180kg |
