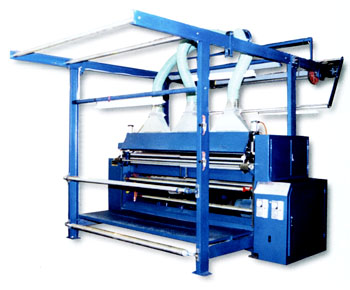

Name:CF54 Cropping Machine
Keywords:Cropping Machine,Textile Instrument,Textile Testing Instrument
Description
Application
It is suitable for shearing lap of cotton and man-made fire flat ruche and filling-knit fabric. It is one of the main equipment for developing weft-knitted velvet stuff. In addition, it is also can be applied to clip other fabric with short nap, which can make the nap flatter and tauter.
Specifications and technical parameters
Normal Width:2200mm
Available Width:2200mm
Maximum Speed:18m/min(adjustable)
Total Power:7.55KW(exclusive of seat)
Nap Height Scope:1-4mm electrical machinery
Hobbling Cutter Speed:200-1250 r.p.m
Hobbling Cutter Number:24 Piece(import hobbling cutter and even cutter)
Boxed Dimension:4100 x 3580 x 2860mm
